GY-T

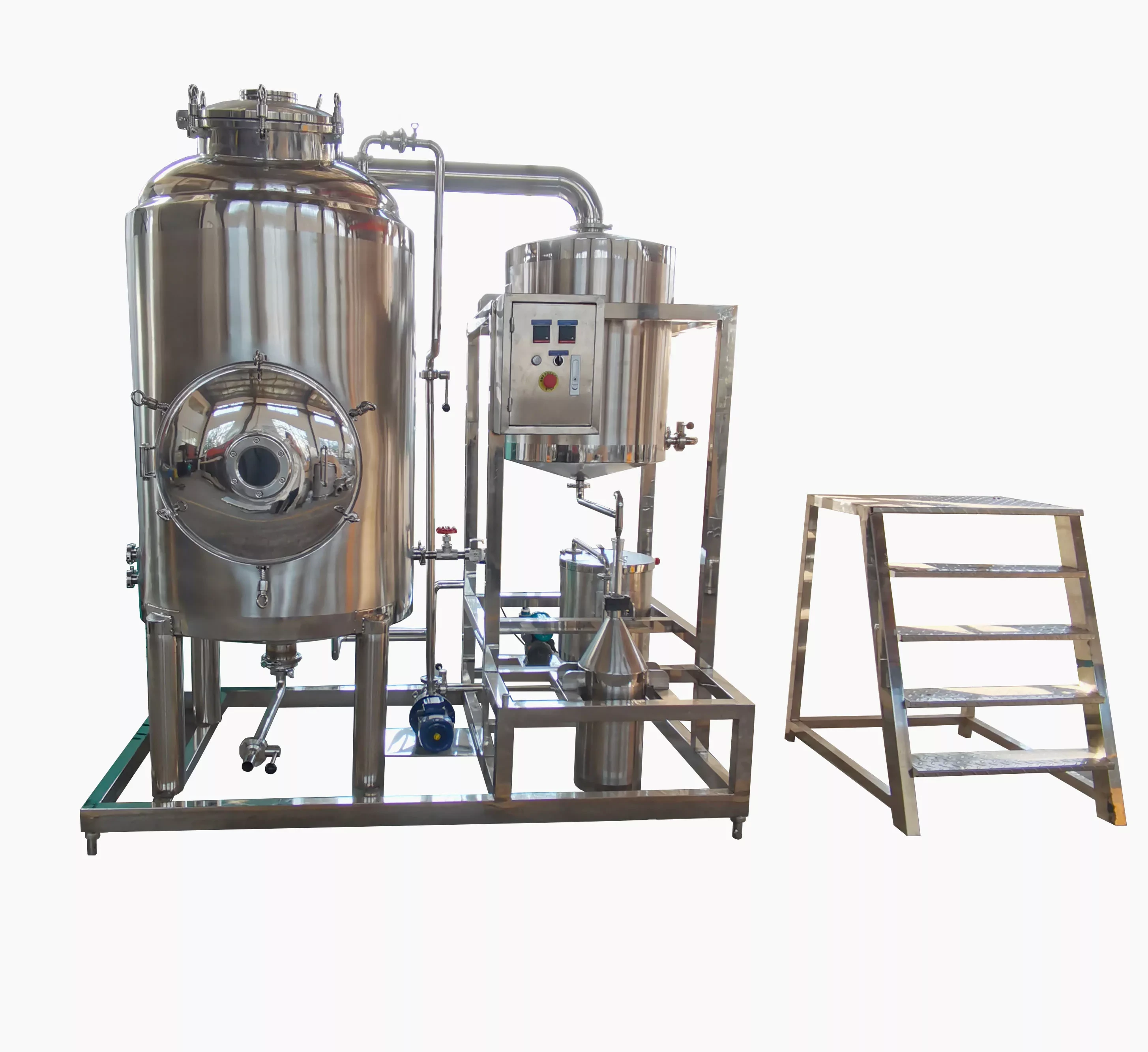

Production Type 500L Herbal Plant Essential Oil Extraction Equipment
Product Details
model | GYT | Material | SUS304 |
Specification | 100L、200L、500L、1000L、2000L、5000L | Origin | China |
brand | type | Herbal Plant essential oil extraction equipment |
Introduction to production-type small essential oil extraction equipment：
It is suitable for conventional volatile oil extraction and hydrosol extraction from plant branches, leaves, flowers and grass materials containing oil. It adopts distillation extraction process and the equipment structure is exquisite, which is very suitable for the initial production use of enterprises and institutions.
Main features of essential oil extraction machine:
1. This equipment uses steam distillation to distill and extract materials;
2. This equipment is a water vapor distillation extraction equipment developed by our company based on the classic essential oil extraction process and combined with an advanced automated control system. It has reasonable structural design, superior performance, and simple and flexible operation.
3. The equipment uses steam heating, which can reach a high temperature of 100 degrees quickly under the conditions of ensuring cleanliness, safety and normal pressure. It guides the steam to quickly pass through the condenser and quickly collects volatile grease into the oil-water separator.
4. Water vapor distillation can achieve a better recovery effect on volatile substances;
5. The oil-water separation adopts a stainless steel multi-pipe design, and the diameter of the glass pipe is less than 25mm, which facilitates the separation and collection of essential oils.
6. The equipment has a built-in plate-type multi-layer distillation with a top-in and side-out structure, which is very convenient for placing materials, discharging slag, and cleaning the equipment.
500L essential oil extraction equipment parameters:
1. Distillation tank: 500 liters, heated by steam generator
2. Condenser: coil condenser, heat exchange area 1.28㎡
3. Slag discharge device: upper feeding and lower discharging slag discharge method
4. Oil-water separator: made of boronized glass
5. Cooling water flow: 2500L/hour, circulating water cooling can be used. Water temperature is less than 15 degrees Celsius
6. Operating platform: stainless steel steps
7. Distillation equipment material: SUS304L 2B
8. Equipment size: 2750mm*1860mm*2300mm (length*width*height)
9. Equipment weight: 580KG.
