GYT

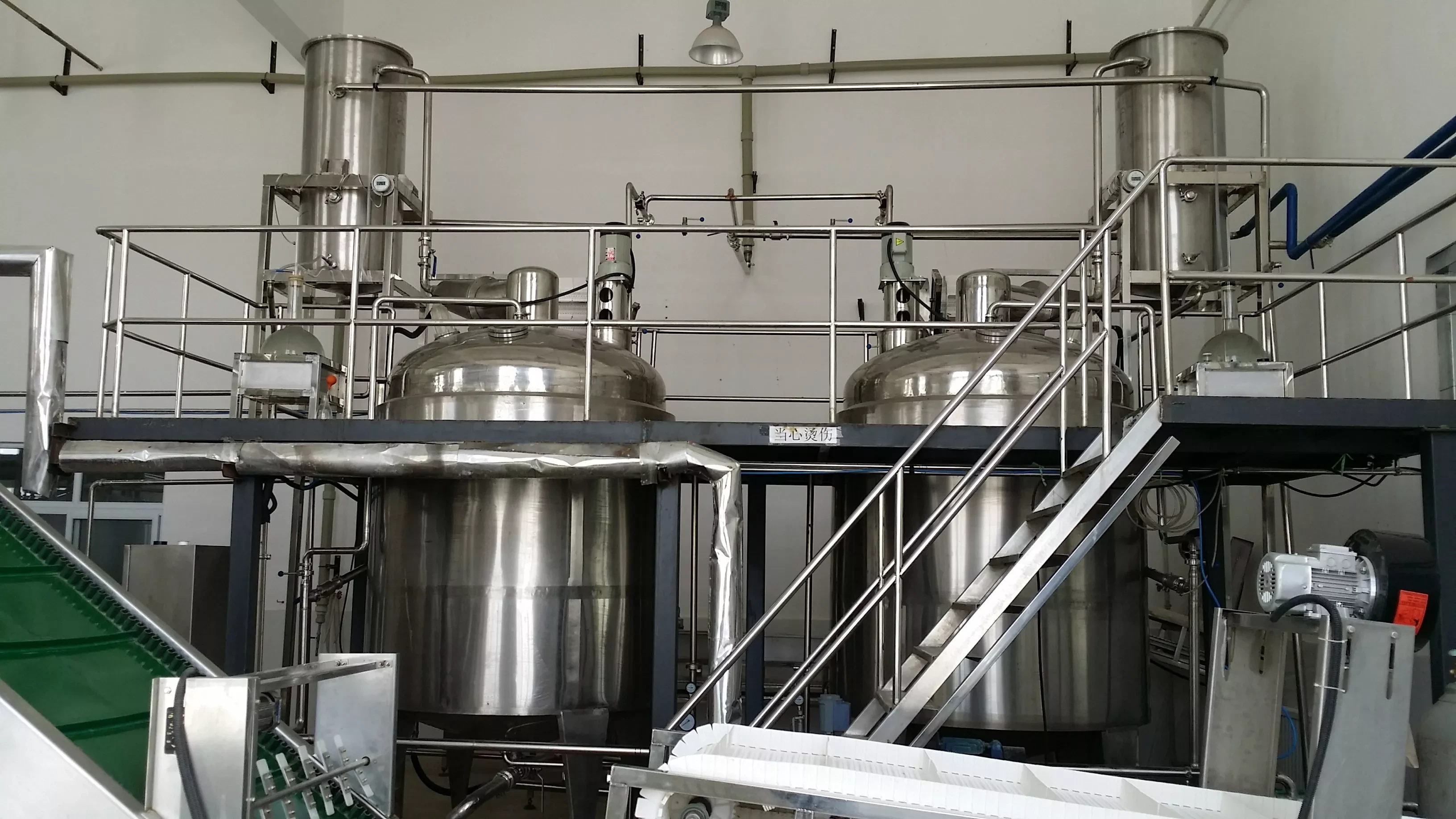

Production Type 3000L Herbal Plant Essential Oil Extraction Equipment
Product Details
model | GYT | Material | SUS304 |
Specification | 20L、50L、100L、200L、500L、1000L、2000L、3000L | Origin | China |
brand | Skym | type | Herbal Plant essential oil extraction equipment |
The utility model discloses a device for extracting natural borneol from borneol camphor, which includes a distillation device and a condensation device. The distillation device includes a tank, a material frame and a material taking tool. The inside of the tank is divided into an upper distillation chamber and a distillation chamber through mesh partitions. The steam generating chamber below; the steam generating chamber is equipped with at least one heating coil; the front of the distillation chamber is equipped with a glass door, and the material frame is placed in the distillation chamber; the condensation device includes a hollow cylinder, a crystal scraping assembly and a circulating cooling water system. The crystal assembly includes a motor and a scraper; the motor is located at the top of the hollow cylinder, and the output shaft of the motor extends into the upper cavity of the hollow cylinder; the end of the output shaft is connected to one end of the scraper; the top of the hollow cylinder is The right side is connected to the top of the tank through a steam pipe; the transverse partition corresponding to the lower left cavity is covered with through holes, and a conical collecting hopper is provided in the lower left cavity. This utility model is convenient for replacing borneol camphor branches and leaves and observing distillation situation, and at the same time, the extraction efficiency of borneol is high.
Pilot equipment was used to improve the original production process for extracting natural borneol from borneol camphor, and a set of industrialized production processes with advanced technology, reasonable technology and high yield were developed.
