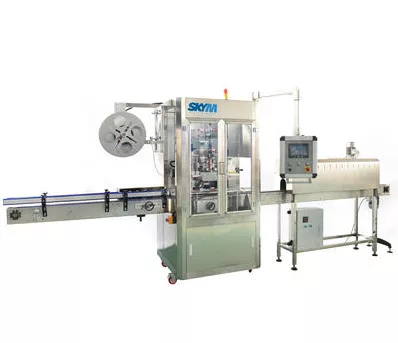

What is the working process of the Labeling Machine?

The labeling machine is a very important part of the production process. It is recommended that you understand the working process and precautions of the labeling machine.

An integral part of the labeling machine

The working process of the labeling machine

Points to note in the work process

1、An integral part of the labeling machine

The body of the labeling machine is roughly as follows, the important core control center PLC, electric eye, label winding mechanism, conveyor belt, label stripping mechanism and display screen.

PLC: It is mainly written by program, and the next step is made by sending out instructions by returning the detected signal.

Electric eye: In the labeling machine, there will be an electric eye for measuring objects and an electric eye for measuring labels. The easy-to-understand explanation of the electric eye for measuring objects is to detect the electronic eye that the labeling object has passed through. The standard measuring electric eye is to detect the label output and adjust the accuracy of labeling. Generally, after the object is detected and the signal is returned to the PLC, an instruction is given to pull the label out.

Display screen: It is an interface for man to operate, which is convenient to control the operation and stop instructions of the machine.

Conveyor belt: plays a role in automatically conveying products.

Label peeling mechanism: A mechanism that peels a single label from a roll label and then applies the label to an object.

2、The working process of the labeling machine

The working principle of the labeling machine is to feed the items into the machine on a conveyor at a constant speed. The mechanical fixing device separates the items by a fixed distance, and then pushes the items in the direction of the conveyor belt.

At the beginning, the boxes are fed to the machine at a constant speed on the conveyor belt. The mechanical fixing device separates the boxes by a fixed distance and pushes the boxes to it in the direction of the conveyor belt. The driving wheel intermittently drags the label tape to move, the label tape is pulled out from the reel, and the labeling wheel will press the label tape on the box through the labeling wheel. The label is attached to the box when the labeling wheel moves at the same speed as the box. When the conveyor belt reaches a certain position, the label belt drive wheel will accelerate to a speed matching the conveyor belt, and after the label is applied, it will decelerate to a stop.

3、Points to note in the work process

Take protective measures

Hands, arms and other parts of the body must leave the working part of the labeling machine, and the body must not exceed the safety range. If there are special circumstances, such as maintenance or something, take protective measures.

Pay attention to the details of wearing

When operating the machine, you must be focused, the clothes must be suitable, and do not wear clothes with straps. And if it’s a girl, be careful with your hair.

Check the condition of each part in advance.

Before it works, it must be ensured that the correct raw materials are used and properly prepared. In addition, tighten the bolts, screws and every mechanical part, and check the environment of the labeling machine. There must be no flammable and explosive materials on site.

The above is some information shared by our company. If you want more detailed information, please inquire.
