With the diversification of juice flavors, it also puts a great test on the juice beverage production line. The filling methods of juice beverages on the market are mainly divided into two methods: aseptic cold filling and hot filling. Let me give you a brief introduction about the process of juice filling machine.
Aseptic cold filling technology
Hot filling technology
Work flow of juice filling machine
Aseptic cold filling refers to filling products at room temperature under aseptic conditions. Aseptic cold filling is characterized by filling under aseptic conditions. It is necessary to ensure that the parts of the equipment where microorganisms are prone to be produced are kept aseptic, so there is no need to add preservatives in the product, and it is not necessary to carry out later stages after the product is filled and sealed. Sterilization. In this way, the requirements for long shelf life can be met.
In order to ensure the success of aseptic cold filling, the production line must meet the following basic requirements: products are sterilized by ultra-high temperature instantaneous sterilization, packaging materials and sealed containers must be sterile, filling equipment To achieve a sterile state, filling and capping must be carried out in a sterile environment, and the establishment, monitoring, recording and control of key control points.
Hot filling is to fill the product into the bottle at a temperature of about 90 degrees Celsius after high temperature sterilization. After the cap is installed, the bottle and cap are finally sterilized with the temperature of the material itself. In this way, the product maintains a high temperature state for a long time, which will cause more damage to its taste and nutrition. Generally suitable for hard and thick bottles.

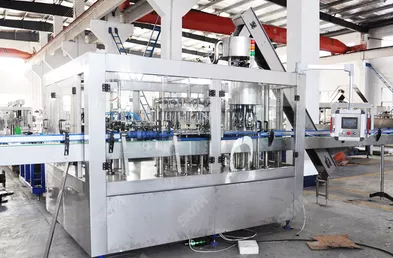

The composition of the juice filling machine is obviously different from ordinary water or carbonated drinks, and the filling method and filling process are also different. Our company has a fully automatic three-in-one juice filling machine that integrates cleaning, filling and capping.
The general process is to place empty bottles and send them to the unloader through a conveyor belt. Send it to the washing machine through the unloader. There is another conveyor belt for disinfection and cleaning. After being inspected by the bottle inspection machine and reaching the cleanliness standard, it passes through the filling machine and capping machine. The beverage is filled into the bottle by the filling machine. The bottle filled with beverage is capped and sealed by the capping machine, and then transported to the labeling system for labeling. After labeling, the bottles will be sent to the box of the cartoner, then to the palletizer, and finally to the warehouse.
There is still a difference between a juice filling machine and an ordinary filling machine. Our company can provide you with a convenient and efficient filling machine to further improve your work efficiency.
