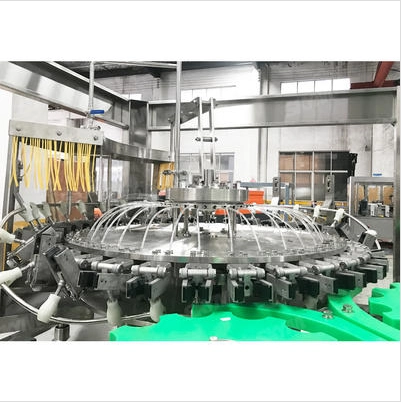

What are the manufacturing technologies of the Juice Filling Machine?

With the continuous demand of China’s shopping malls, liquid filling operations have developed rapidly, and more and more manufacturers demand automatic juice filling machines. In fact, automatic juice filling machines are used in fluids, pastes, viscosities, etc. Product processing and production. Different filling equipment has different filling methods, including three filling methods: normal pressure, negative pressure, and pressure, which are suitable for different product requirements.

Analysis of filling method of juice filling machine

The process of an automatic liquid filling machine is generally:

The development trend of juice filling machine

Analysis of filling method of juice filling machine

1. Atmospheric filling method;

This type of equipment usually raises the storage tank to increase the pressure. It is filled with its own body weight as the driving force, which is suitable for the processing of milk, grape wine and other products with good fluidity and low viscosity.

2. Negative pressure filling method;

This type of equipment is also called a vacuum filling machine. The pressure in the bottle must be lower than the atmospheric pressure, and then the product is filled according to the principle of air pressure balance. This type of equipment generally has a simple structure, but the components are tightly combined and have no major requirements for the viscosity of the material. It can complete the processing of syrup, oil, sauce and other products.

3. Pressure filling method;

This type of equipment is filled under the condition of higher than atmospheric pressure. One is to use the pressure in the storage tank to equal the pressure in the bottle, and the liquid material flows into the bottle by its own weight, which is also called equal pressure filling. The other is to add a booster piston on the top of the storage tank to boost the processing. Common filling products include beer, champagne, and gaseous beverages.

The process of an automatic liquid filling machine is generally:

Boxes with empty bottles are stacked on pallets and sent to the unloading machine by a conveyor belt. The pallets are unloaded one by one. The boxes are sent to the unloading machine with the conveyor belt. The empty bottles are taken out of the box and the empty boxes are passed through the conveyor belt. It is sent to the box washing machine, cleaned, fully automatic juice filling machine, and then transported to the box filling machine, so that the bottles with beverages can be filled in between. The empty bottles taken out from the unloading machine are sent to the bottle washing machine for disinfection and cleaning by another conveyor belt. After being inspected by the bottle inspection machine, they enter the filling machine and capping machine after conforming to the cleaning specifications. The beverage is filled into the bottle by the filling machine. The beverage bottles are capped and sealed by the capping machine and transported to the labeling machine for labeling. After labeling, they are sent to the cartoning machine to be put into the box and then sent to the stacker and pallet machine to be stacked on the pallet and sent to the warehouse.

The development trend of juice filling machine

The packaging machinery industry is an important part of our country's economy, and the juice beverage filling machine is a large category in the entire packaging machinery, and plays an important role in various industries, especially in the food industry. However, there are many companies producing bottling production lines, and their business models are also different. The capital, strength, and technical level are even more different, and the starting points are also different.
