Low Price Manual 2.5L Bottle Blow Molding Machine

Share to:

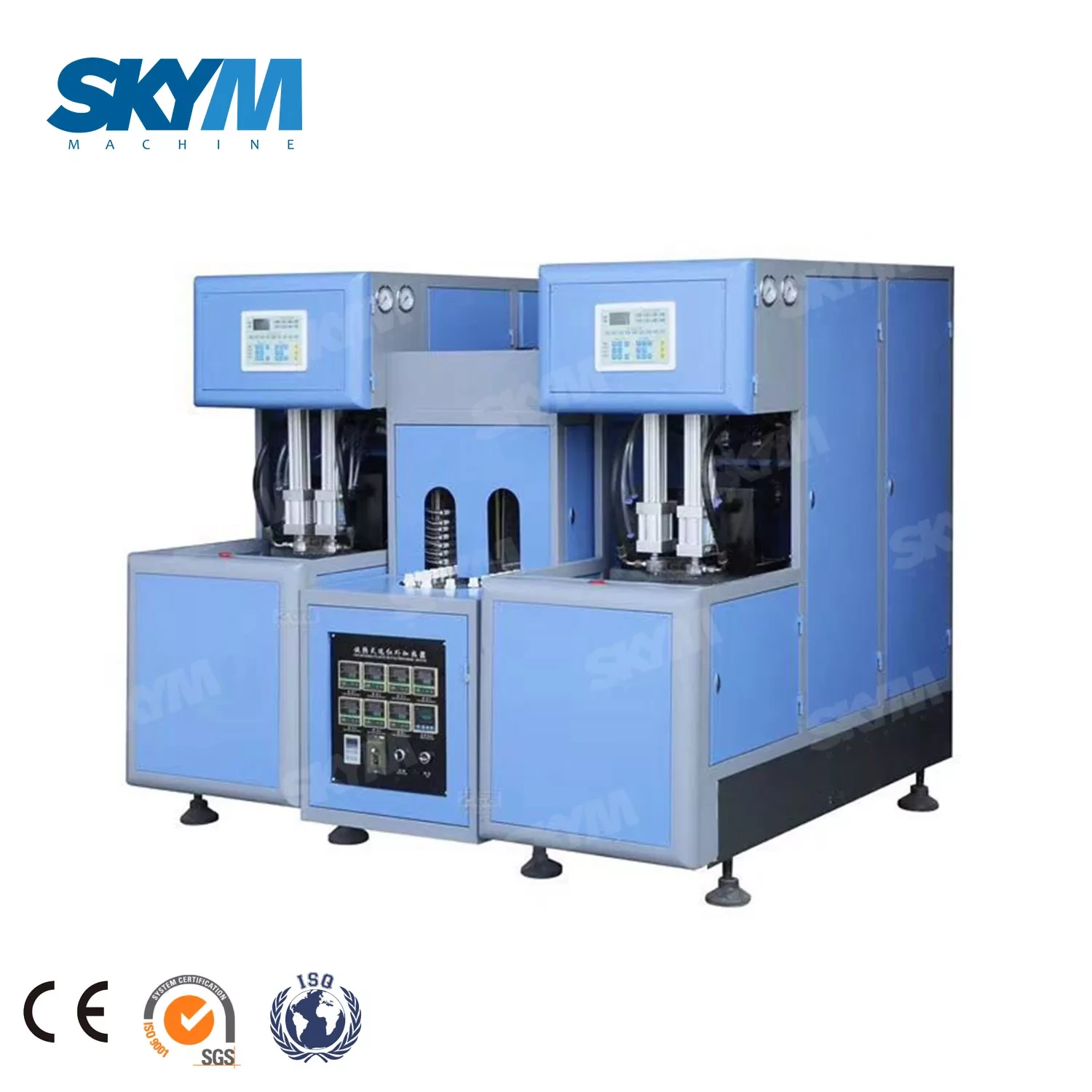

Low Price Manual 2.5L Bottle Blow Molding Machine

Low Price SKY-SA4 Manual 2.5L Bottle Blow Molding Machine is a linear bottle blowing machine which is developed and researched by the most advanced bottom making technology in the current world and molded through blowing PET by high pressure compressed gas.The machine needs a bottle blank appropriate to bottle type.

Availability:

Quantity:



Inquire Add to Basket

Model:
SKY-SA4
Brand:
SKYM

Product Description

Products Description

Low Price SKY-SA4 Manual 2.5L Bottle Blow Molding Machine  is suitable for producing PET plastic containers and bottles. It is widely used to produce the carbonated bottle, mineral water, carbonated drink bottle, pesticide bottle oil bottle cosmetics, wide-mouth bottle etc.
•Adopting double crank to adjust mold, heavy locking mold, stable and fast,. Adopt infrared oven to heat the perform, the perform rotated and heated equally.
•The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow. It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
•The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.

Main Technical Date
Model	SKY-12	SKY-8Y	SKY-SA4	SKY-5L	SKY-10L
Bottle Volume	10L-25L	0.01L-2L	0.01L-2.5L	0.01L-5L	5L-10L
Theoretical Output	90-180pcs/h	1200-1600pcs/h	2000pcs/h	300-800pcs/h	300-500pcs/h
Blower(LWH)	21877196cm	16060161cm	19088180cm	17567186cm	19372183cm
Blower/Weight	1000kg	500kg	1000kg	600kg	800kg
Heater(LWH)	23768135cm	18763145cm	19066160cm	18763145cm	18763145cm
Heater/Weight	380kg	250kg	380kg	250kg	250kg
Power	40kw	17.5kw	18kw	17.5kw	17.5kw

Main Features

 A. Stable performance with advanced PLC.
B. Conveying preforms automatically with conveyor.
C. Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the
rails simultaneously in the infrared preheater.
D. High adjustVability to enable the pre-heater to preheat preforms in shapes by adjusting the light tube and the length of the reflecting board in the preheating area, and eternal temperature in the preheater with an automatic thermostatic apparatus.
E. High safeties with security automatic-locking apparatus in each mechanical action, which will make the procedures turn into a state of safety in case of a breakdown in certain procedure.
F.No contamination and low noise with the air cylinder to drive the action instead of the oil pump.
G. Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.
H. Strong clamping force with high pressure and double crank links to lock the mold.
I. Two ways of operating: automatic and manual.
J. Safe, reliable, and unique design of the position of valve to make the air pressure diagram of the machine easier to
understand.
K. Low cost, high efficiency, easy operation, easy maintenance, etc, with automatic technological process.
L. Contamination is avoided for the bottle body.
M. Ideal effect of the chilling with the chilling system.
N. Easy installation and starting
O. Low rejection rate: less than 0.3percent.

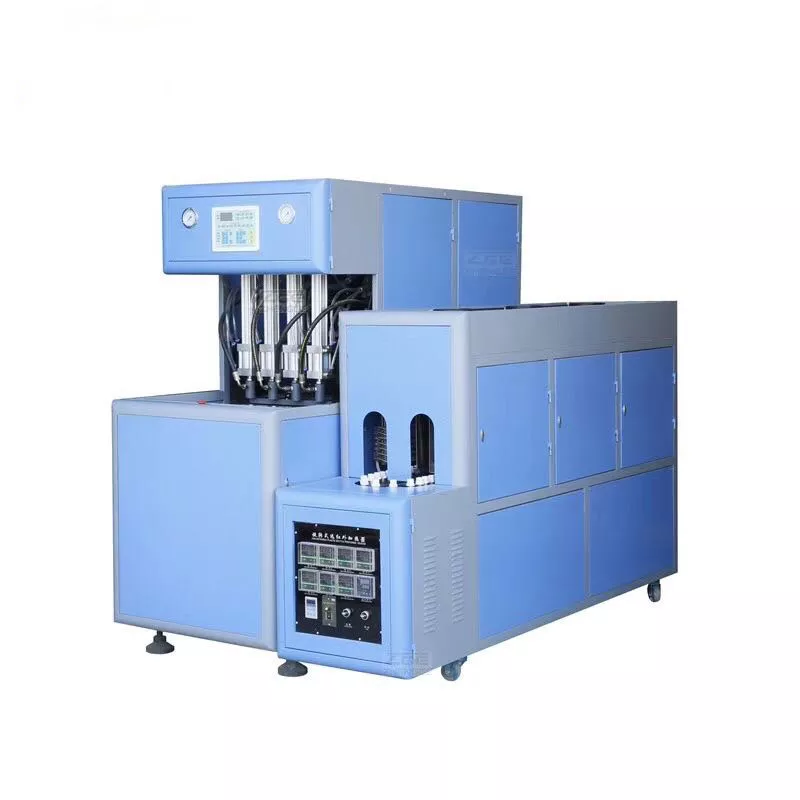

Details Images

Configuration list
PLC controller PLC	MITSUBISHI
Touch screen	MITSUBISHI
Cylinder	SMC, Japan SMC
Filter	TPC, Korea TPC
Magnet valve	TPC, Korea TPC
Photoelectric switch	OMRON,Japan
Contactor	Schneider,France
Proximity switch	SICK ,German
Sensor	OMRON,Japan
Switch power	MEANWELL,Taiwan
Frequency converter	Mitsubishi,Japan
Main Servo motor	XINJIE CHINA
Feeding Servo Motor	XINJIE CHINA

FAQ

1. A: Are you factory?How many workers do you have?      B: Yes,we are factory. our factory is located in zhangjiagang near from shanghai. We have about 50 workers in our factory.

 2. A: What about after sale service?
     B: 12months of electrical part and 18months of mechanical part after machine installed and running normally.

 3. A: What about installation?
     B: Our engineer can be sent to your country. but customer should pay the air tickets and 100usd as salary per person per day. besides, customer should arrange the accommodation for them during the trip.

 4. A: What do we do if we encounter problem about the machine ?
     B: Show us the picture or video of the problem. If the problem is from small machine, we will send you solution by video. If the problem is from large machine, our engineer will go to your factory (customer will pay the fee during the trip).

 5. A: How can you control the quality and delivery?
     B: All our machines will be tested before packaging. wooden packaing is strong and safety for long delivery.
