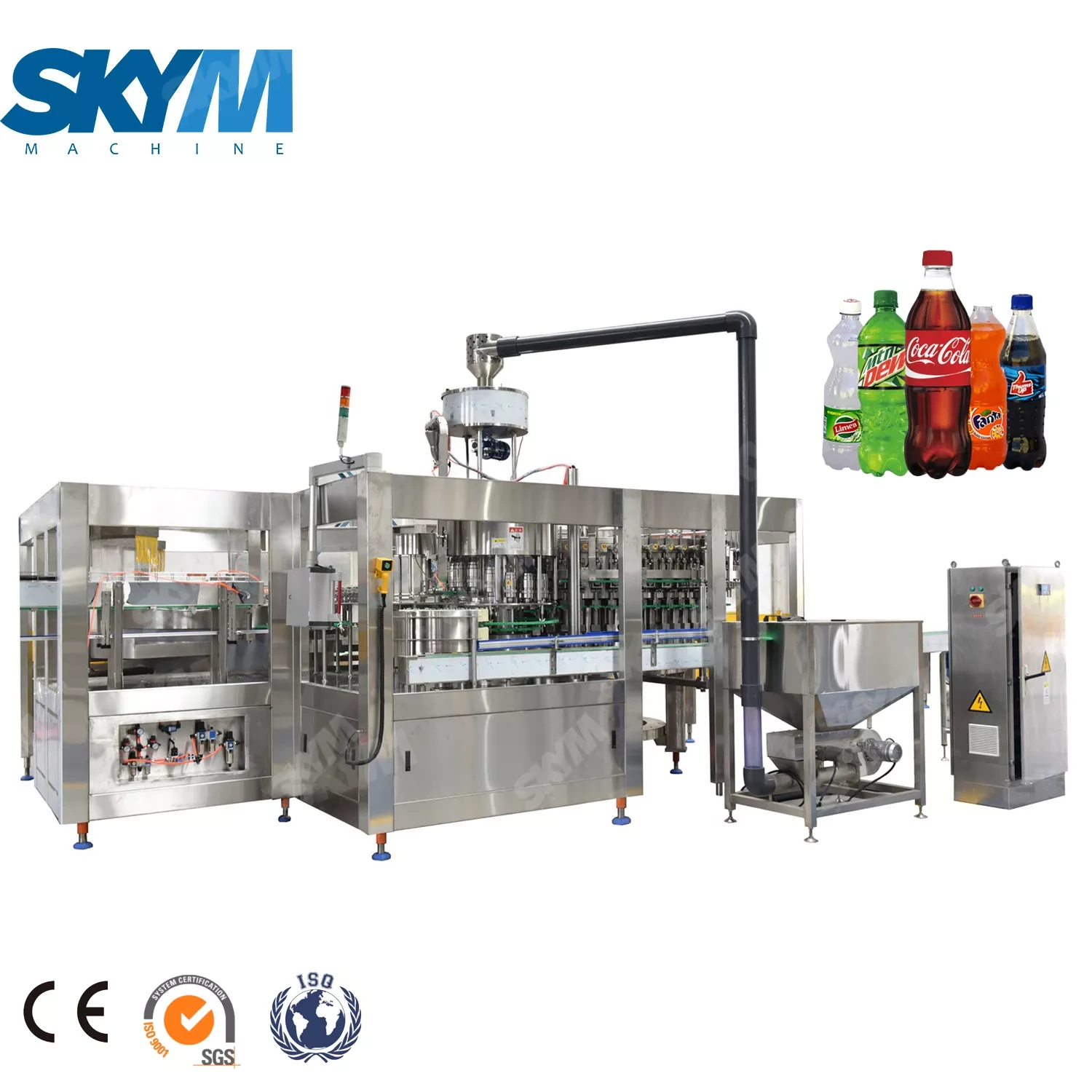

High Capacity 15000BPH Bottle Filling Machine For Soft Drinks

High Capacity 15000BPH Bottle Filling Machine For Soft Drinks Combined with the function of washing filling capping in one machine,and apply to PET bottle carbonated drink filling.Mainly used for carbonated water,cola,sparking wine,water,soft drink and other carbonated beverage.
Availability:
Quantity:
  • DCGF40-40-12

  • SKYM

Production Application
Product Description
DCGF-series rinsing, filling, Capping 3-in-1 monobloc machine introduced by foreign advanced gas-filling technique is a high performance fully automatic liquid packaging equipment. Machine for carbonated beverage packaging machine has the following characteristics: filling tank, filling valves and other components in direct contact with the material are high-quality stainless steel or non-toxic materials, in line with food hygiene requirements: use of resistant seals hot rubber to meet the high-temperature sterilization process of user requirements: PCL programmable controller used to realize from the bottle into the machine to the packaging of finished using the automatic control of frequency control, easy to transfer the user to adjust prepared to meet the different process on the capacity requirements; using isobaric filling principle and popular spring-loaded valves, ensuring the quality of the beverage, using an advanced magnetic clutch adjustment screw cap torque device to ensure the quality of the blocks.

Rinser

Bottle clip equipped with efficient spray on nozzle.The extrusive droplet with 15 angleensures to wash all side of the bottle.

Filler

The filling valve material is SUS304.The filling system has liquid level automatic control.Filling valve elevator, after filling
valve contact the bottle neck, it starts to fill.

Capper

The magnetic torque is used foe screw capping.The power of screw capping can be adjusted without steps.The power of the screw capping can also be fixed, and the caps will not be damaged, the capping is reliable.

Beverage Machinery-Equipment characteristics:

1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6.Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan\'s Mitsubishi, France Schneider, OMRON.
Product Paramenters
Model
DCGF60-60-15
Amoust of working position
Rinsing 60, filling 60, capping 15
Production Speed
18000bottles per hour(500ml)
Pressure of air source
0.3~0.7Mpa
Air consumption
0.2~0.6M3/min
Pressure of rinse water
0.06~0.2Mpa
Consumption of rinsing water
3t/hour
Main motor power
6.92kw
Dimension
6725*3960*2700mm(L*W*H)
Weight
8000kg




FAQ

Q1:What's your guarantee or the warranty of the quality if we buy your machines? A1:We offer you high quality machines with 1 year guarantee . we will give u spare part free in 1 year,Life long after service. Mean while, our engineers go more than 50 countries for debugging, with rich experience.   Q2:When can I get my machine after I paid? A3:We will deliver the machines on time as the date we agreed both side.   Q3:How can I install my machine when it arrives? A3:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run the machines.    Q4:What's the delivery time? A4:30-45 days after the T/T deposit or L/C.
