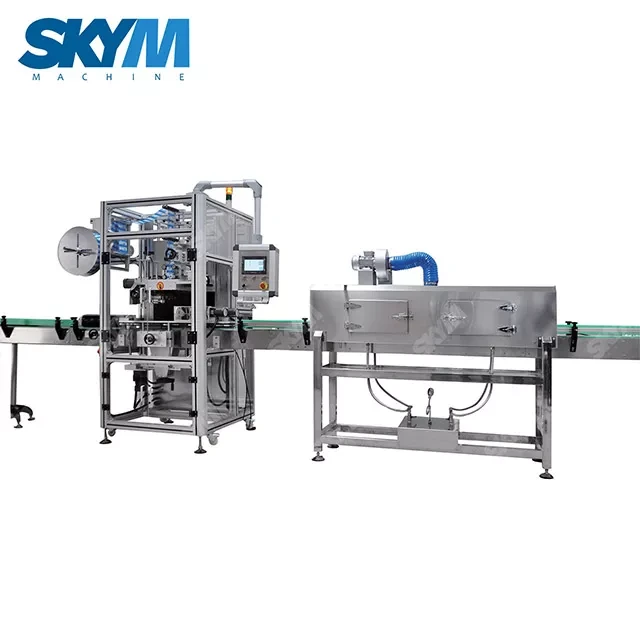

Automatic Single Head Shrink Sleeve Labeling Machine SLM-150B

Availability:
Quantity:

Automatic single head shrink sleeve labeling machine (SLM-150B):

SLM-150B sleeve labeling machine is a low speed machine which can reach 9000 bottles per hour ,but it adopts equivalent PLC, servo motor and frequency converter. It also adopts the positioning module to ensure the casting label precise, rapid and stable.
It's applicable various kinds of bottle types, like: round, square , flat ,cruve and cup-shaped,etc.It applies to such food & beverage industries as fruit juices, tea drink, dairy products, pure water, condiments, beer and sports drink .
1. All-cover type stainless steel host machine : the whole machine is waterproof as well as rustproof.
2. Adjustable cutter head: unique cyclotron cut-off, double sided cutting edge with a long service life.
3. Single positioning center guide pillar: more stable for label delivery.
4. Synchronous bottle divider: a more stable transmission for the bottle.
5. Bottom set label brush: more precision for casting label.
6. Label-controlling electric-eye shelf: Unique combination of tail and electric eye to improve the precision for cutting off the membrane materials.
7. Push-button control cabinet : a more humanized operation.
8. Independent feeding material shelf: the position of the material shelf is optional at will.
9.Electrical Appliance Configuration Specification
It adopts PLC programmable controller , imported servo motor, servo driver, frequency converter and transducer: also, it adopts the positioning module to ensure the casting label precise ,rapid and stable.
10.Applicable Variety Types of Label Various kinds of bottle types, for example : round bottle, square bottle, curve bottle and cup-shaped, etc.



Technical Parameters

Input Power

1.5KW

Input Voltage

3, 380/220VAC

Production Efficiency

150 Bottle/ min

Size of Host Machine

L2100mm×W850mm×H2000mm

Applicable Diameter of Bottle Body

28mm-125mm

Applicable length of Label

30mm-250mm

Applicable thickness of Label

0.03mm-0.13mm



250B

SLM-250 Sleeve Labeling Machine, with capacity reaching 250 bottle per minute, is popular in the market.
This machine is preferred in labeling drink bottles with its high speed and good stability.
1. All-cover type stainless steel host machine : the whole machine is waterproof as well as rustproof.
2.Adjustable cutter head: Unique cyclotron cut-off, double sided cutting edge with a long service life.
3.Single positioning center guide pillar: more stable for label delivery.
4.Synchronous bottle divider: a more stable transmission for the bottle.
5.Bottom set label brush: more precision for casting label .
6.Label-controlling electric-eye shelf: unique combination of tail and electric-eye to improve the precision for cutting off the membrane materials.
7.Push-button control cabinet: a more humanized operation.
8.Independent feeding material shelf : the position of the material shelf is optional at will .
9.Electrical Appliance Configuration Specification
It adopts PLC programmable controller, imported servo motor ,servo driver, frequency converter and transducer. It also adopts the positioning module to ensure the casting label precise, rapid and stable.
10.Applicable Variety Types of Casting Label,For example : round bottle ,square bottle , flat bottle, curve bottle and cup-shaped ,etc.



Input Power

3KW

Input Voltage

3, 380/220VAC

Production Efficiency

250 Bottle/ min

Size of Host Machine

L2100mm×W850mm×H2000mm

Applicable Diameter of Bottle Body

28mm-125mm

Applicable length of Label

30mm-250mm

Applicable thickness of Label

0.03mm-0.13mm





350B

1.SLM-350B Sleeve Labeling Machine with double material rack unit, can reach 350 bottle/ min.
2.With a breakthrough of the traditional technology of casting label, the equipment can integrate three to four trapping label machine varieties into one .It only needs to change the modules to realize the casting label of different varieties & type.
3.The machine can operate at the same limited velocity and there is no bottle overturning or label missing.
4.It has super powerful servo electrical appliance configuration, motor encoder for servo motor conveying line with high disposition, automatic trace with electric eye and whole line automatic stepless.
5.According to the characteristics of the label sleeving machine ,we have made improvements from the aspects of mechanical structure, circuit design, and intellectual control to improve the production efficiency.
6.It can satisfy the demands of various beverage manufacturers as well as reduce the production cost for the clients and improve the production rate.
7.Double Driving Mechanism
H type design of the mechanism meets the requirements of four-wheel drive , automatic centering and four-wheel balanced pressure. Because of the design of the equal velocity ratio, it completely realizes the goals of accurate casing label, smooth label transmission, stable operation and swift label cutting.
8.Applicable Varieties for Trapping Label
9.With a breakthrough of the traditional technology of casting label, the equipment can integrate three to four trapping label machine varieties into one .It only needs to change the modules to realize the casting label of different varieties & type.
10.It is added with the motor encoder for servo motor conveying line with high disposition, automatic trace with electric eye and whole line automatic stepless speed adjustment.



Input Power

4.5KW

Input Voltage

3, 380/220VAC

Production Efficiency

350 Bottle/ min

Size of Host Machine

L2100mm×W1100mm×H2000mm

Applicable Diameter of Bottle Body

28mm-125mm

Applicable length of Label

30mm-250mm

Applicable thickness of label

0.35mm-0.13mm

Applicable Internal Diameter of Paper Tube

5' -10' Free Adjustment



450B

1.SLM-450B Sleeve Labeling Machine with double material rack unit, can reach 450 bottle/ min.
2.With a breakthrough of the traditional technology of casting label, the equipment can integrate three to four trapping label machine varieties into one .It only needs to change the modules to realize the casting label of different varieties & type.
3.The machine can operate at the same limited velocity and there is no bottle overturning or label missing.
4.It has super powerful servo electrical appliance configuration, motor encoder for servo motor conveying line with high disposition, automatic trace with electric eye and whole line automatic stepless.
5.According to the characteristics of the label sleeving machine ,we have made improvements from the aspects of mechanical structure, circuit design, and intellectual control to improve the production efficiency.
6.It can satisfy the demands of various beverage manufacturers as well as reduce the production cost for the clients and improve the production rate.
7.Double Driving Mechanism
H type design of the mechanism meets the requirements of four-wheel drive , automatic centering and four-wheel balanced pressure. Because of the design of the equal velocity ratio, it completely realizes the goals of accurate casing label, smooth label transmission, stable operation and swift label cutting.
8.Applicable Varieties for Trapping Label
9.With a breakthrough of the traditional technology of casting label, the equipment can integrate three to four trapping label machine varieties into one .It only needs to change the modules to realize the casting label of different varieties & type.
10.It is added with the motor encoder for servo motor conveying line with high disposition, automatic trace with electric eye and whole line automatic steppless speed adjustment.





Input Power

5.5KW

Input Voltage

3, 380/220VAC

Production Efficiency

450 Bottle/ min

Size of Host Machine

L2100mm×W1100mm×H2000mm

Applicable Diameter of Bottle Body

28mm-125mm

Applicable length of Label

30mm-250mm

Applicable thickness of label

0.35mm-0.13mm

Applicable Internal Diameter of Paper Tube

5' -10' Free Adjustment





Automatic Double Head shrink Sleeve Labeling Machine (SLM-250D):

sleeve labeling machine In order to meet the needs of markets at home and abroad,our company has researched and developed double head mechanism to meet the requirements of casting label for casting label for bottle mouth and bottle body.
shrink sleeve labeling machine Advantages:
The machine can be used in two ways. lt not only reduces a trapping label machine. but also saves the cost for customers.
It reduces the length of conveying line or avoids the secondary transportation, so that it increase the production efficiency and the floor areas of equipment.
It reduces the length of conveying line or avoids the secondary transportation, so that it increases the quality of product.
Electrical Appliance Configuration Specification:
It adopts equivalent PLC, positioning module, servo motor and frequency converter. Besides, its touch screen is featured with a humanized operation.
Varieties for Casting Label:
With the accurate casting label, the equipment applies to the castina label and sealing for bottles with various shapes and hexagonaI oil drum.Suitable for large bottle-type (3-5liters barrel containers). The products are sold in quantity to the domestic and overseas markets.



Model

SLM-250D

Input Power

6KW

Input Voltage

∮3380/220VAC

Production Efficiency

2*250(bottles/min)

Size of Host Machine

3200L×1200Wx2070H

Applicable Diameter of Bottle Body

28mm~125

Applicable Length of Label

30mm~250mm

Applicable Thickness of Label

0.03mm~0.13mm

Applicable Internal Diameter of Paper Tube

5”~10”
