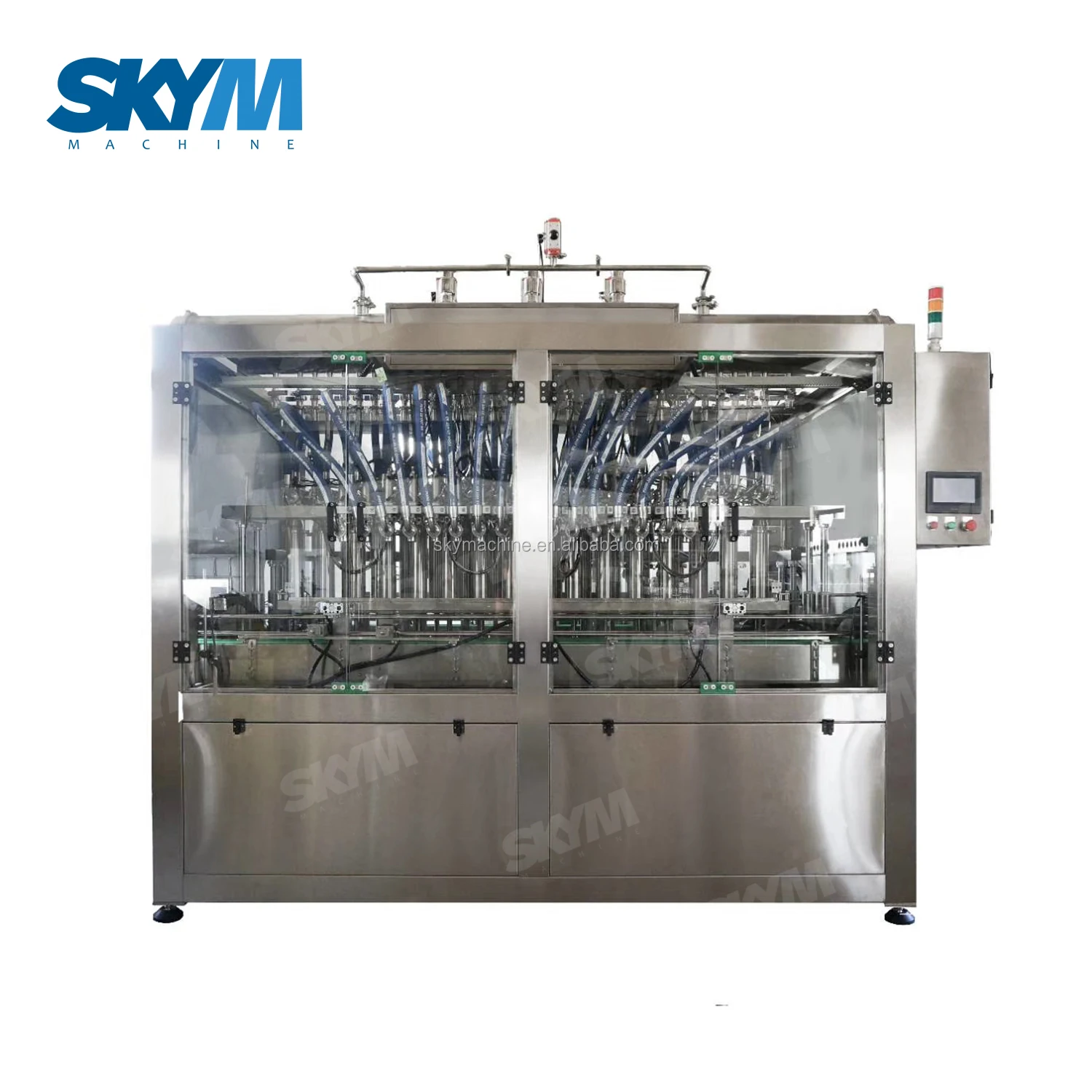

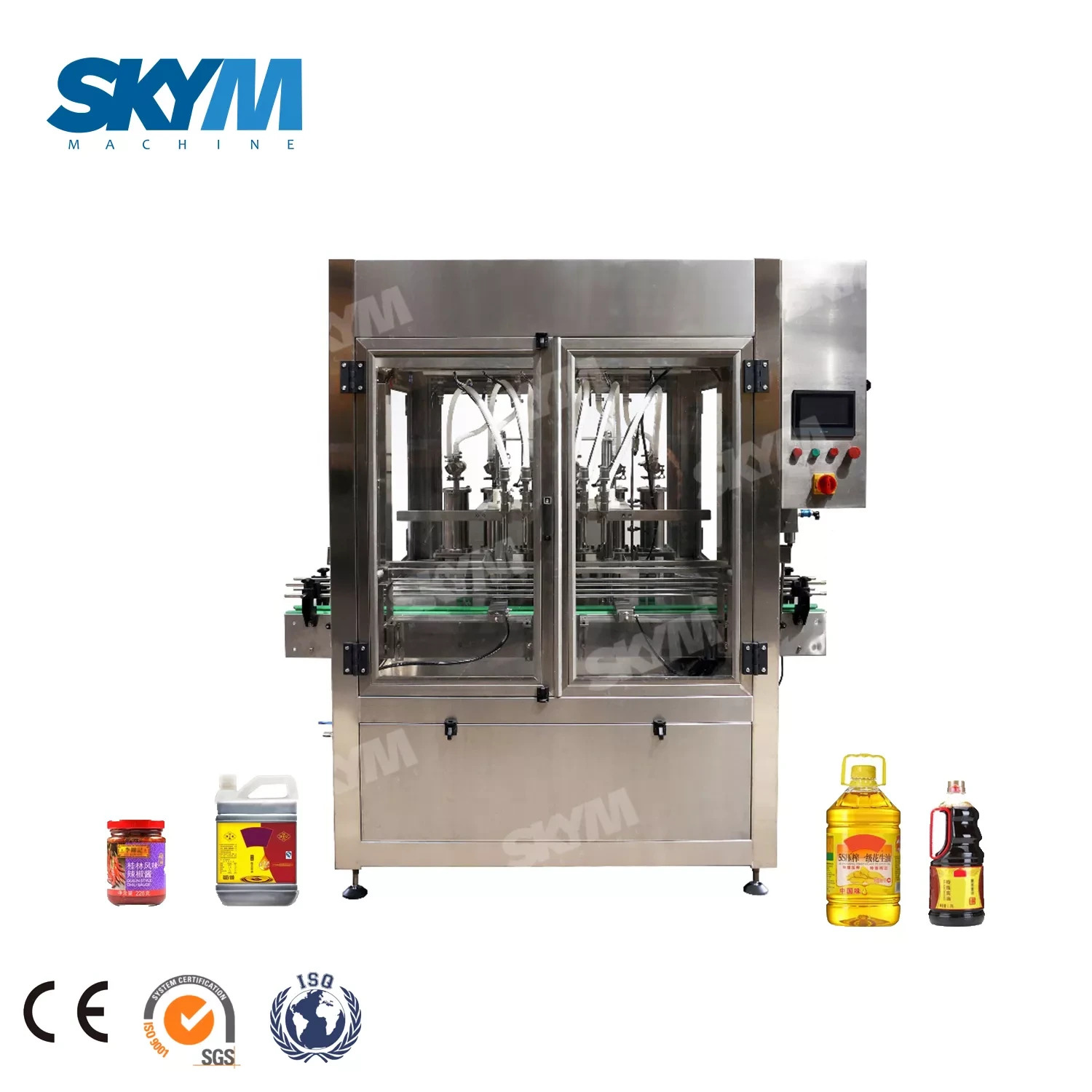

Automatic Tomato Ketchup/paste/sauce Bottling Filling Machine

Automatic Tomato Ketchup/paste/sauce Bottling Filling Machine adopts programmable logic controller ( PLC) and human machine interface system.Imported photoelectric track from Korea, suitable for filling materials with high viscosity or bad fluidity.The machine integrates electric and pneumatic functions into one, with electric heating for the hopper and tube, also assembled with mixing functions.The whole machine is with easy cleaning, convenient operation and conforms to GMP standard.
Availability:
Quantity:
  • SKYM

Production Application
Product Description

Automatic Tomato Ketchup/paste/sauce Bottling Filling Machine   is suitable for packaging of non-viscosity and high-viscosity materials. The whole machine has an in-line structure, and the principle of servo motor-driven filling and volumetric filling is used to achieve high accuracy of the filling dose. Adopt PLC control and touch human-machine interface, the whole machine is convenient and intuitive to operate. Optional high-precision electronic scale automatic weighing data transmission system for faster dose adjustment.

Details Images

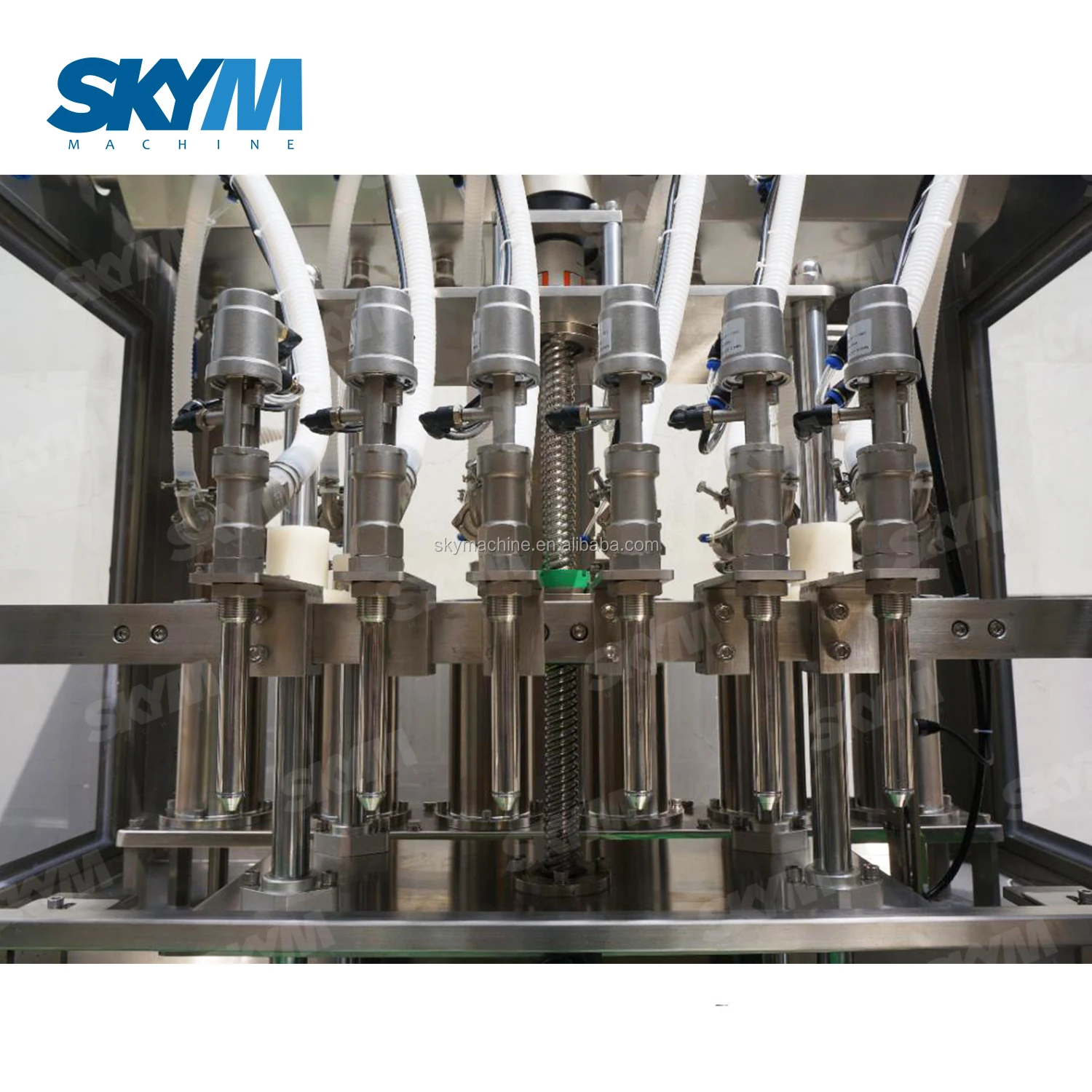

Anti-drip filling valve system
Diving nozzles are lifted by the air cylinder

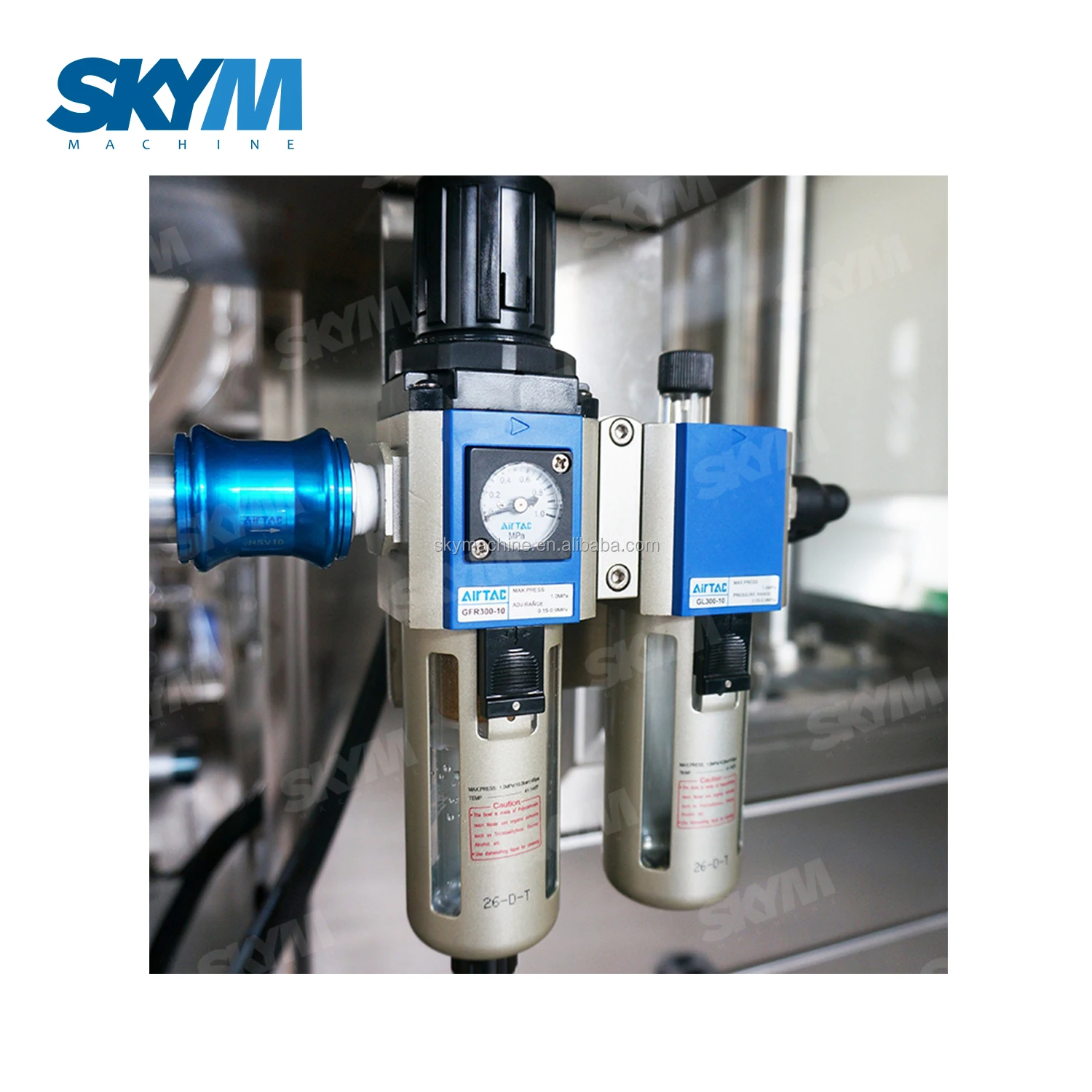

Airtac air source processor filters compressed air.

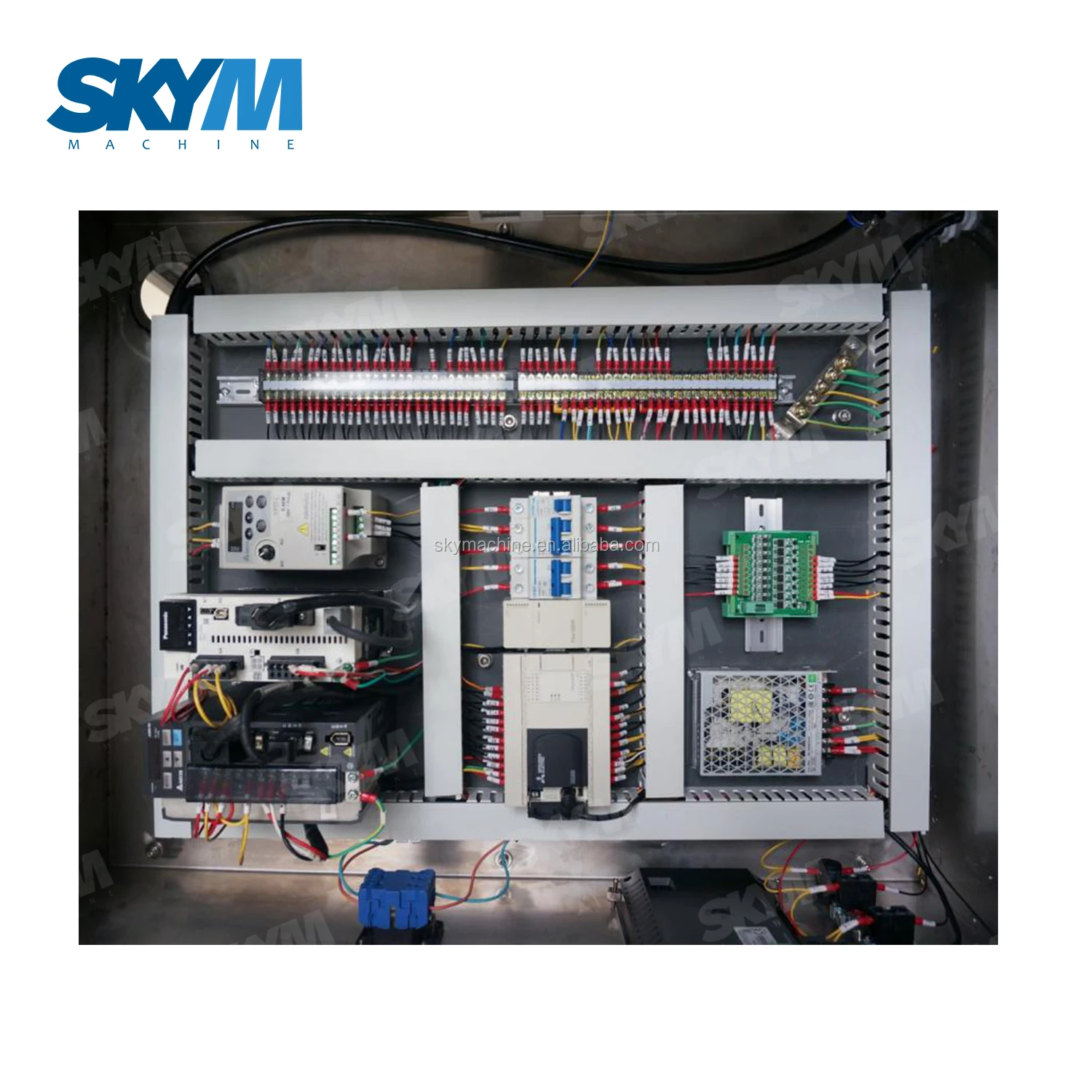

Stainless steel electrical cabinet, safe and environmentally friendly. Will use explosion-proof electrical appliance box

Product Paramenters
Model
SKY1000-6F
Filling Capacity Options
50ml-1000ml
Liquid Contact Part Material Option
Stainless Steel 316L
Supply Voltage
220V, 50-60Hz, 1 Phase
Power Consumption
1.5 kW
Air Pressure
4-6kg
Dimension
(L)2000mm X (W)1050mm X (H)1970mm
Net Weight
650kg
Filling Nozzle
6 Nozzles






FAQ

Q1:What's your guarantee or the warranty of the quality if we buy your machines? A1:We offer you high quality machines with 1 year guarantee . we will give u spare part free in 1 year,Life long after service. Mean while, our engineers go more than 50 countries for debugging, with rich experience.   Q2:When can I get my machine after I paid? A3:We will deliver the machines on time as the date we agreed both side.   Q3:How can I install my machine when it arrives? A3:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run the machines.    Q4:What's the delivery time? A4:30-45 days after the T/T deposit or L/C.   Q5:What's min order quantity? A5:1 unit
