Automatic Sleeve Labeling Machine for Water Bottle

Share to:

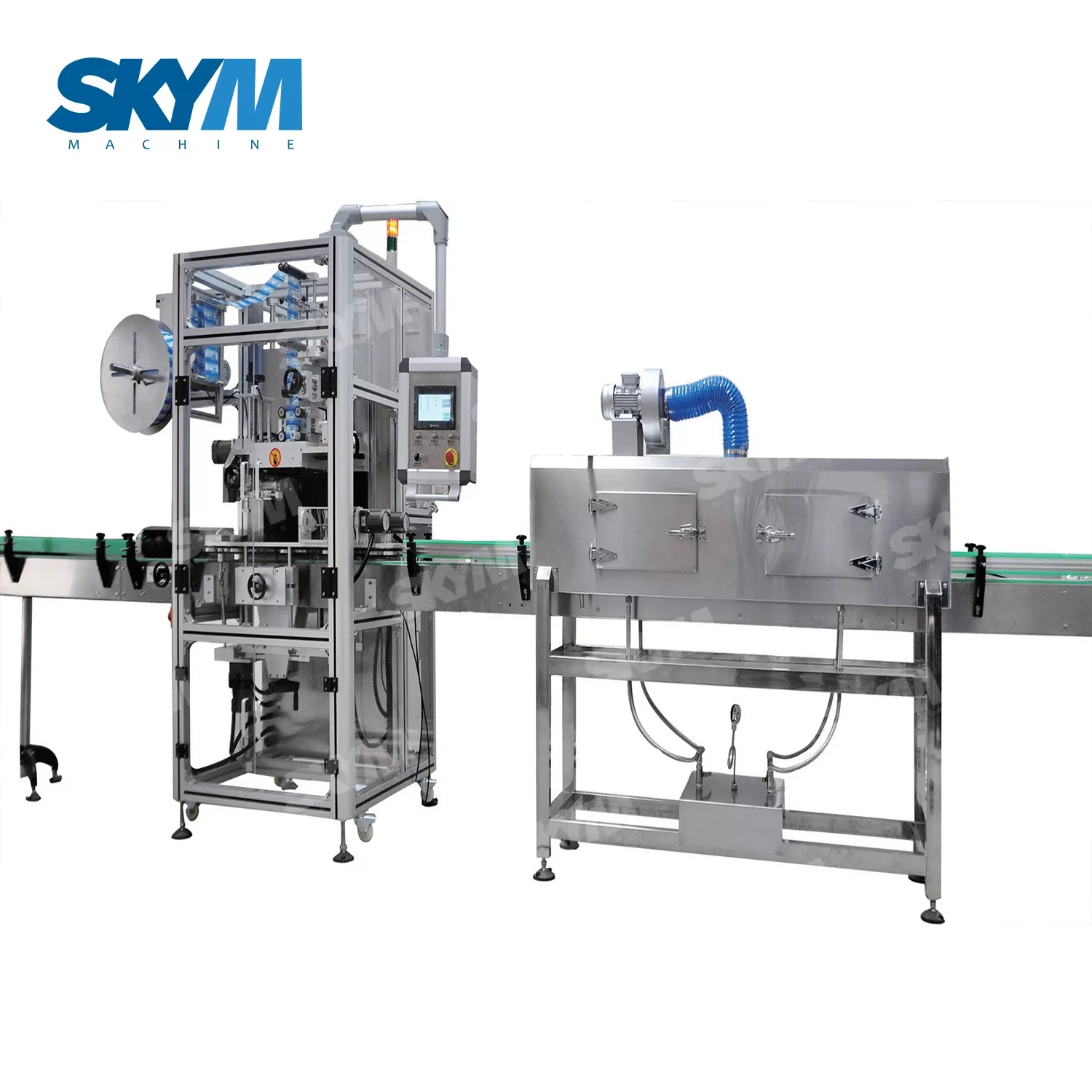

Automatic Sleeve Labeling Machine for Water Bottle

Automatic Sleeve Labeling Machine for Water Bottle adopts international advanced technology; cover the circle label on the pet bottle.And then hot shrinking to fix on the position which bottle body designated.This machine's structure is compact, and suitable for the production line of different direction and different height.

Availability:

Quantity:



Inquire Add to Basket

Brand:
SKYM

Product Description

Production Application

Product Description

 Automatic Sleeve Labeling Machine for Water Bottle machine adopts international advanced technology; cover the circle label on the pet bottle.And then hot shrinking to fix on the position which bottle body designated.This machine's structure is compact, and suitable for the production line of different direction and different height.
The machinery part adopts combination designing of modularization, and makes the machine reasonable. The height adjustment adopts motor fluctuating; It is convenient to replace the material. The special cutter head designing, make the film-rolling cut more exactly and reliably.

Specification:
Import Power	3.0 Kw
Import Voltage	∮3, 380/220 VAC
Production Capacity	150 bottles/miute
Dimension of Host Machine	L2100mm × W850mm × H2000mm
Applicable Diameter Container	φ28 mm ~ φ120 mm
Applicable Label Length	30~250 mm
Applicable Thickness Label	0.03~0.13 mm
Applicable Inner Diameter of Paper Tube	5''~10''

Device Structure

Double roller

1.Unique sleeve labeling method, using pressure sleeve labeling method.  2.The unique knife disc design can avoid changing the knife holder and change the knife quickly and easily.
 3.Middle guide rod clamping system, fast mold changing speed, no need of any
instrument.

Improved label brush down system

After the label is set, use the brush to reach the fixed label position.
Good elasticity, wear - resistant, not easy to
damage, long service life.

Simple operation, short replacement time.

Movable control panel

Touch screen simple operation, intelligent system control, high reliability.
Simple, convenient and natural human-computer interaction.It gives multimedia with a new look.

It is a very attractive new multimedia interactive equipment.

Steam Shrink Tunnel

New bottle label steam shrinkage tunnel, label steam shrinkage machine.
label steam thermal shrinkage tunnel, label steam tunnel, thermal shrinkage efficiency is greatly improved;

For different specifications of shaped round, square, flat bottles, such as bottles, easy adjustment and maintenance, shrink
flat.

Steam Generator

Small electric thermo steam bolier fracure compact and small cube, machine inner set auto water replenishing bump, and set auto
water-level controlling, pressure controlling, can work continually.
Bolier water cubage low 30 litre, evoid complex annual YSR
Boiler water volume is small, working pressure is highly.

FAQ

1. A: Are you factory?How many workers do you have? B: Yes,we are factory. our factory is located in zhangjiagang near from shanghai. We have about 50 workers in our factory. 2. A: What about after sale service? B: 12months of electrical part and 18months of mechanical part after machine installed and running normally. 3. A: What about installation? B: Our engineer can be sent to your country. but customer should pay the air tickets and 100usd as salary per person per day. besides, customer should arrange the accommodation for them during the trip. 4. A: What do we do if we encounter problem about the machine ? B: Show us the picture or video of the problem. If the problem is from small machine, we will send you solution by video. If the problem is from large machine, our engineer will go to your factory (customer will pay the fee during the trip). 5. A: How can you control the quality and delivery? B: All our machines will be tested before packaging. wooden packaing is strong and safety for long delivery .
