RCGF 16-16-5
SKYM

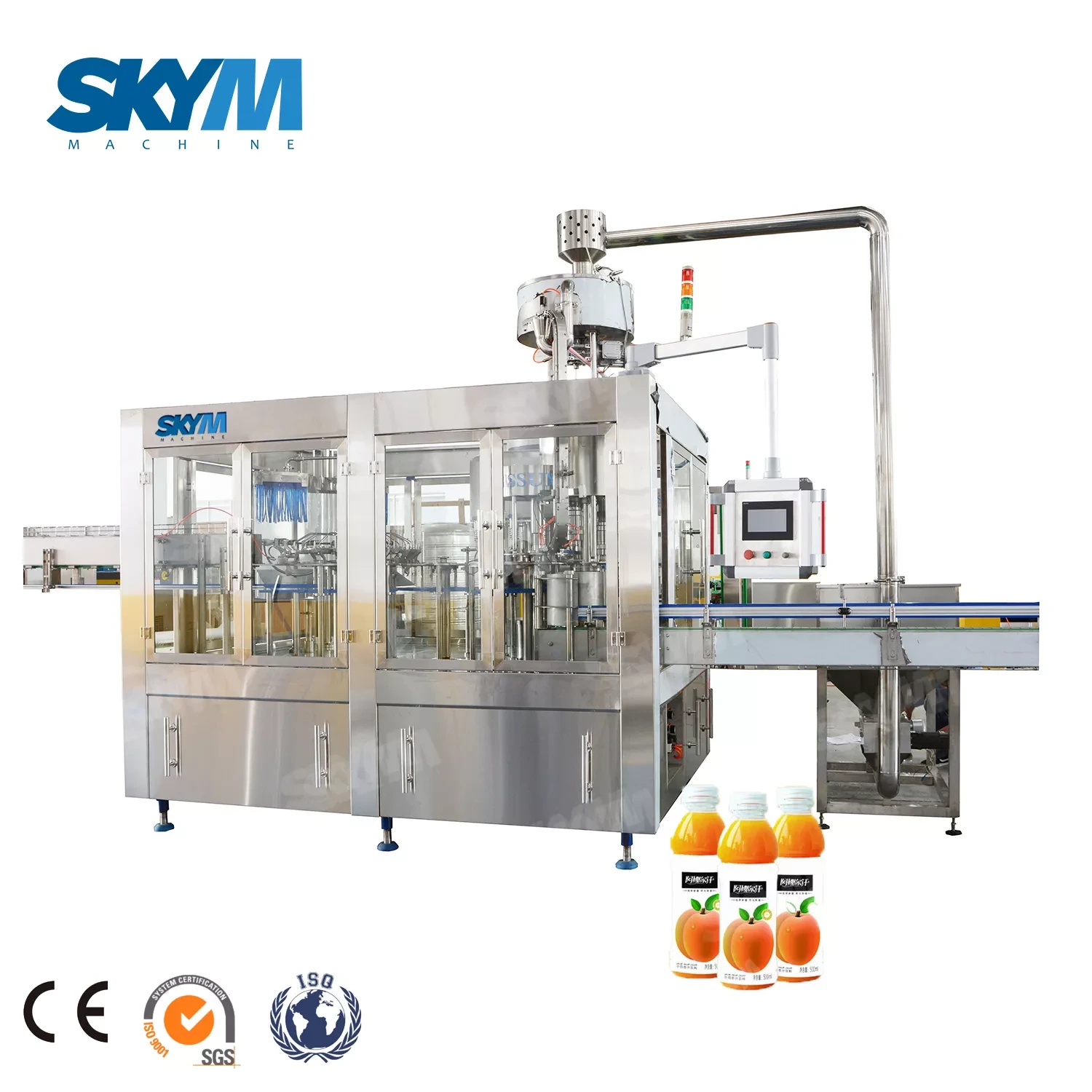

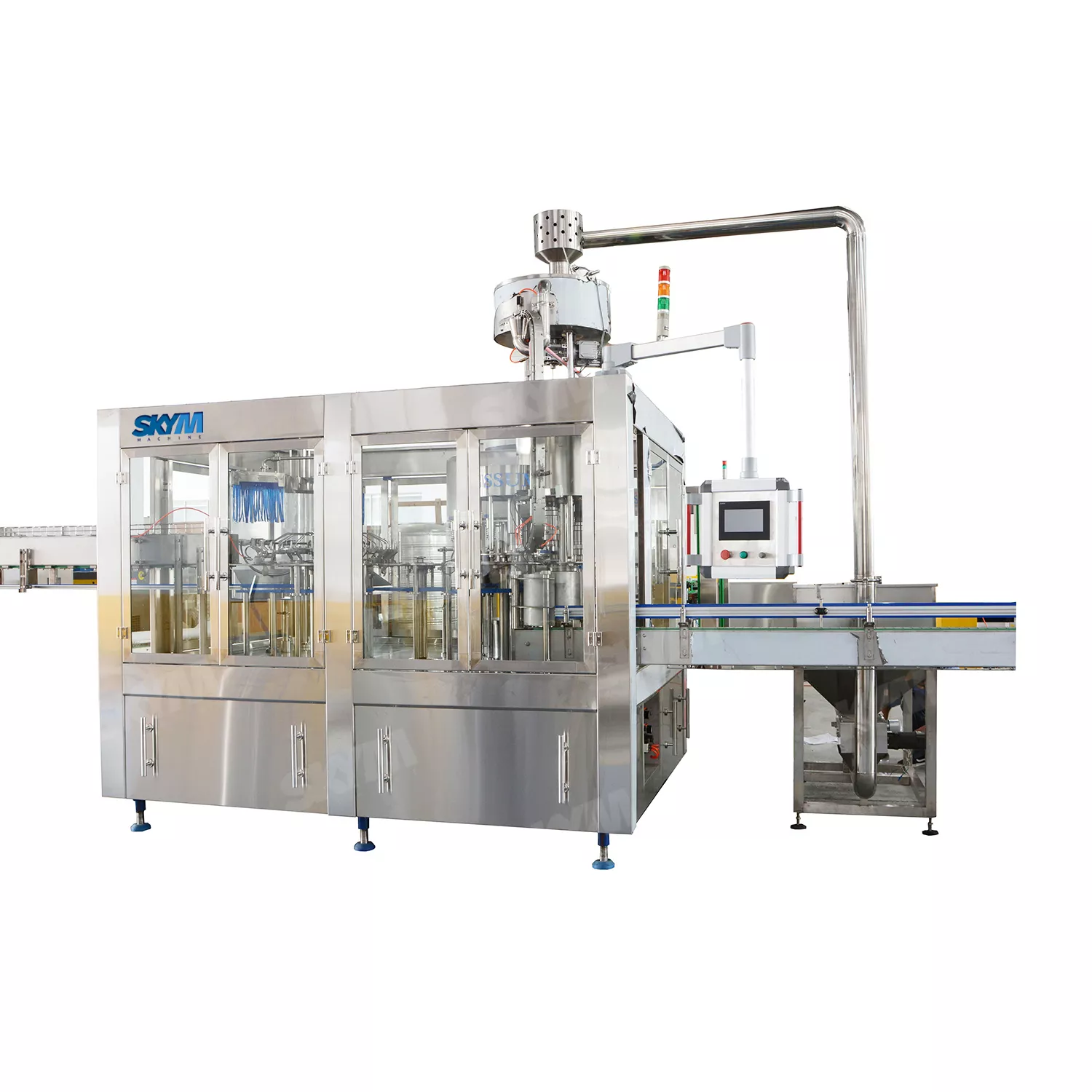

500ml Glass Bottle Aseptic Juice Beverage Filling Machine integrates bottle washing, water filling and capping into one monobloc, and the three processws are carried out full automatically. Itis used in the hot filling of juice and tea beverage. It is equipped with perfect temmperature control system, reverse-flow system, automatic cleaning system and control program. Each machine element that grade rubber.
Product Description
500ml Glass Bottle Aseptic Juice Beverage Filling Machine is introduced advanced foreign technology such as washing, filling, capping technology. It is used in filling hot fruit juice, tea and other beverage, if you replace some parts, it can also be used in filling normal temperature filling.
Beverage Machinery-Equipment characteristics:
1. Using the wind sent access and move wheel in the bottle directly connected technology; Canceled screw and conveyor chains, this enable the change of the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough...
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.
7. Equipped with a constant temperature system, temperature controlled and circumfluenting automatically.
8.Other product name:juice bottle filling machine,300ml plastic bottle for juice,machine juice orange industrial.
Technical Characters
Full Filling is to avoid bottles from sinking after the bottles cooling off,and to decrease dissolved oxygen to the utmost extent.
Reasonable structured storage hopper and material supply system keep material in the constant flow speed,constant pressure and without frothing...Usually high position tank is adopted.
The storage hopper has the characteristic of gas discharge,full sealing and temperature detecting,in moderate and high speed production line,the material distributor replaces the big liquid tank to realize the complete CIP.

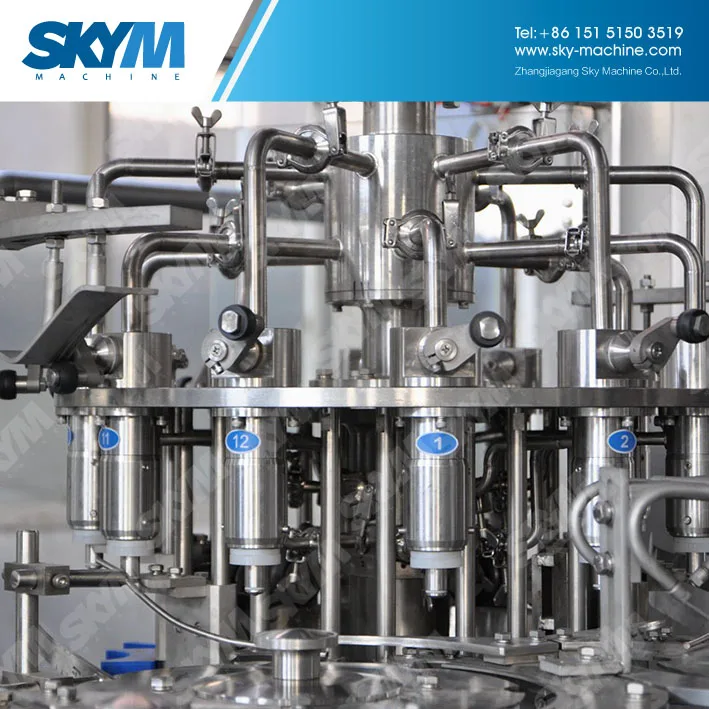

Sanitary filling head system is of umbrella structure,high filling speed.
Prefect filling temperature control system.
Return tank system have the function of supplying the material automatically.
Perfect CIP system.
Technical Parameter
| Model | RCGF14124 | RCGF18186 | RCGF24248 | RCGF32328 | RCGF404010 | RCGF505012 | RCGF606015 |
Capacity: (500ml)/h | 3000-4000 | 5000-7000 | 8000-12000 | 12000-15000 | 16000-18000 | 20000-24000 | 24000-28000 |
| Bottle specifications(mm) | H=170-320 ∅=50-100 (330~1500ml) | ||||||
| Pressure(MPa) | 0.25-0.3 | ||||||
| General Power(kw) | 1.87 | 2.57 | 3.7 | 4.7 | 8.2 | 9.7 | 11.7 |
| Overall Size | 2300*1680 *2650 | 2500*1760 *2650 | 3100*2100 *2650 | 3800*2800 *2650 | 4000*3300 *3400 | 4850*3650 *3300 | 6500*5400 *3500 |
| Weight(kg) | 2600 | 3500 | 4800 | 6500 | 10000 | 12000 | 15000 |
FAQ
1.Can your factory provide he whole plant from A to Z?
Yes, we can provide the complete plant, from bottling making plant,water purification plant,to filling packing plant.
2.Are all machinery your factory made?
Our factory make the water purification and filling packing plants.we do not make the bottle making machinery,we have good quality bottle making machinery partner,and we provide to customer same long warranty time and good after service.
3.How can i know the machinery quality before i order?
First,we will invite you visiting our factory to check the machines quality,and show the machines running for you in our factory.
4.What certificates you can provide?
Our factory provide the CE,SGS,ISO,and according to some countries,we also can provide the PVOC, COC,SONCAP...etc.
