50-50-15
SKYM

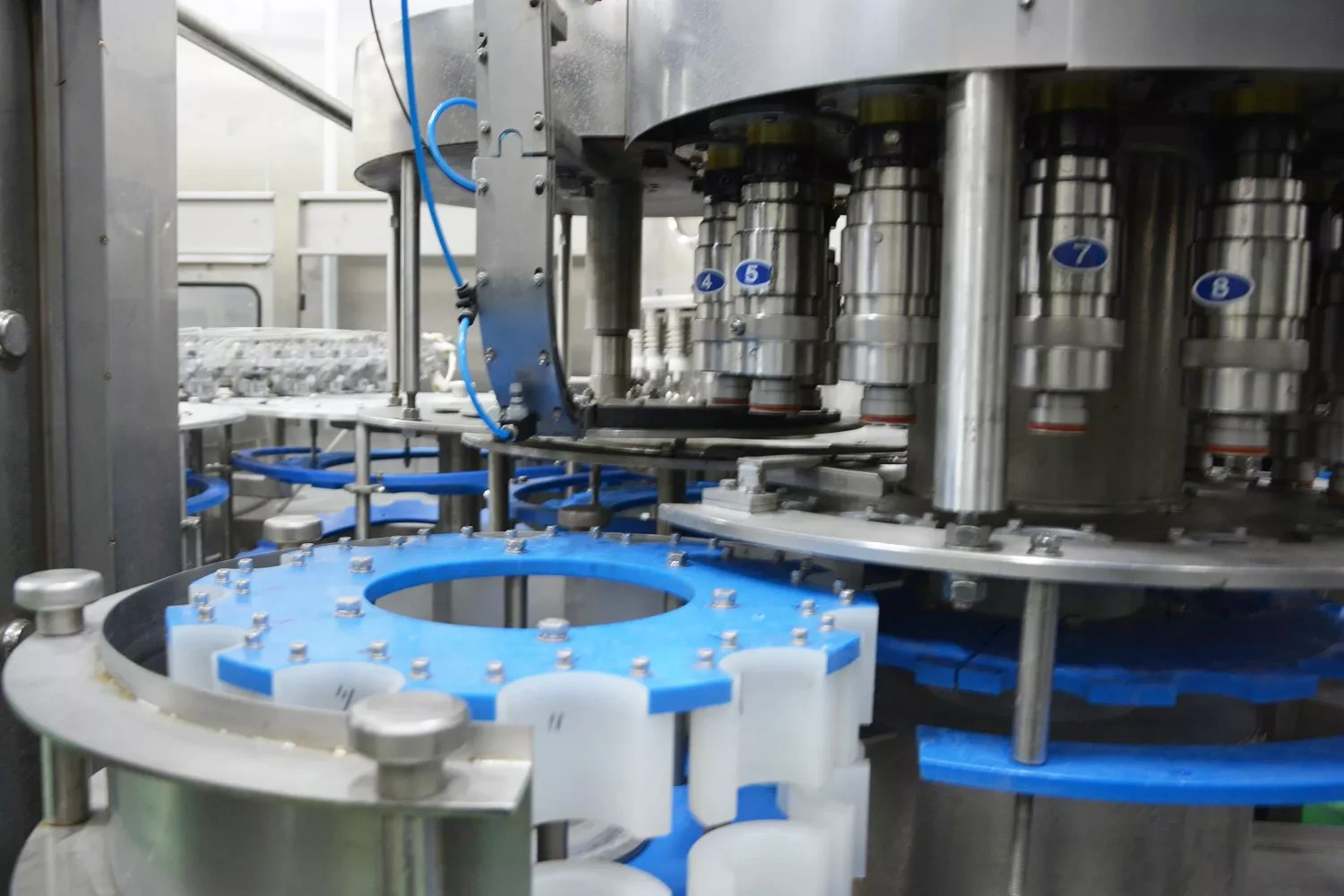

50 Heads Drinking Water Bottle Filling Machine is one of advanced models which is our company combines international advanced self-filling process and technology developed specifically for mineral water, pure water and other non-gas beverage filling installation.
Size information
| Model | Washing | Filling | Capping | Capacity(b/h) | Motor | Overall |
| heads | heads | heads | 500ml | power | dimension(mm) | |
| (kw) | ||||||
| CGF14-12-5 | 14 | 12 | 5 | 2000-4000 | 1.5 | 2100*1400*2500 |
| CGF18-18-6 | 18 | 18 | 6 | 5000-7000 | 2.2 | 2460*1720*2650 |
| CGF24-24-8 | 24 | 24 | 8 | 8000-12000 | 3 | 3100*2100*2650 |
| CGF32-32-10 | 32 | 32 | 10 | 12000-15000 | 4 | 3500*2500*2650 |
| CGF40-40-10 | 40 | 40 | 10 | 16000-20000 | 7.5 | 4600*1800*2650 |
| CGF48-48-12 | 48 | 48 | 12 | 20000-24000 | 9.5 | 5200*4500*3400 |
| CGF50-50-15 | 50 | 50 | 15 | 24000-26000 | 11 | 5800*4500*3400 |
| CGF60-60-15 | 60 | 60 | 15 | 26000-30000 | 12 | 6500*4500*3400 |
| CGF72-72-18 | 72 | 72 | 18 | 30000-36000 | 14 | 6800*4500*3700 |
Main feature
1.Using the wind sent access and move wheel in the bottle directly connected technology;Canceled screw and conveyor chains,this enable the change the bottle-shaped become easier.
2.Bottles transmission adopt clip bottleneck technology,bottle-shaped transform not need to adjust the equipment level,only change relater the curved plate,wheel and nylon parts is enough.
3.The specially designed stainless steel bottle washing machine clip is solid and durable,no touch with the screw location of bottle mouth to avoid secondary pollution.
4.High-speed large gravity flow valve filling valve,filling fast,filling accurate and no liquid lose.
5.Host adopt advanced PLC automatic control technology,the key electrical components from famous company such as Japan,France Schneider
6.Spiraling decline when output bottle,transform bottle shape shape no need to adjust the height of conveyor chains.
7.Other product name:glass bottle filling machine,flow filling machine,e-liquid filling machine
This is the products of our 50 Heads Drinking Water Bottle Filling Machine.
FQA
3:What's your guarantee or the warranty of the quality if we buy your machines?
We offer you high quality machines with 1 year guarantee . we will give u spare part free in 1 year,Life long after service. Mean while, our engineers go more than 50 countries for debugging, with rich experience.
